IK-N90+N95
Manufacturer:
ALEDA Techno
Country of Origin:
Taiwan
Short description:
Semi-Automatic Angular Head + Position Chainring 90° Angle Head
basic information
specifications
Images
- 1. Semiautomatic processing angle head is suitable in all type of milling heads, can change the processing angle and direction.
- 2.This product uses for Japanese gear grinding, so the spindle speed can up to 2000 rpm and also can bring powerful and high-quality cutting benefits for machine.
- 3. This product offers manual or semiautomatic two type for options.
- 4. This product offers one degree or five degree for your optional.
- 5. IK-N90+N95 has been applied throught the structure patents, the patents number are M446037 and
- ZL 2012 2 0450246.5.

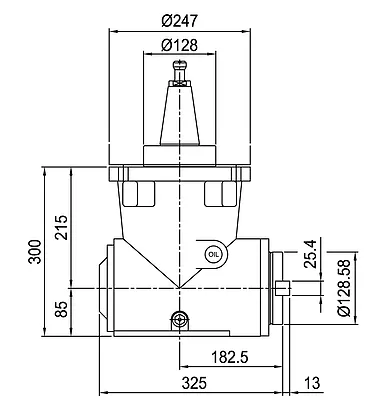

The IK-N90 Angular Head features an NT50 spindle with a direct-drive 1:1 speed ratio, enabling full power transmission without torque loss. It supports a maximum cutter diameter of 150 mm and reaches spindle speeds up to 2000 rpm. Lubrication is provided by Shell Spirax G Oil ISO68. The head weighs approximately 93 kg. The IK-N95 Position Chainring accessory enables precise indexing and angular orientation with spindle nose length options of 90 mm or 191 mm. This setup is ideal for rigid, high-speed 90° milling, slotting, and drilling tasks, offering high mechanical repeatability for multi-axis setups. The unit originates from Taiwan and includes a 1-year warranty (excluding user-induced damage).
