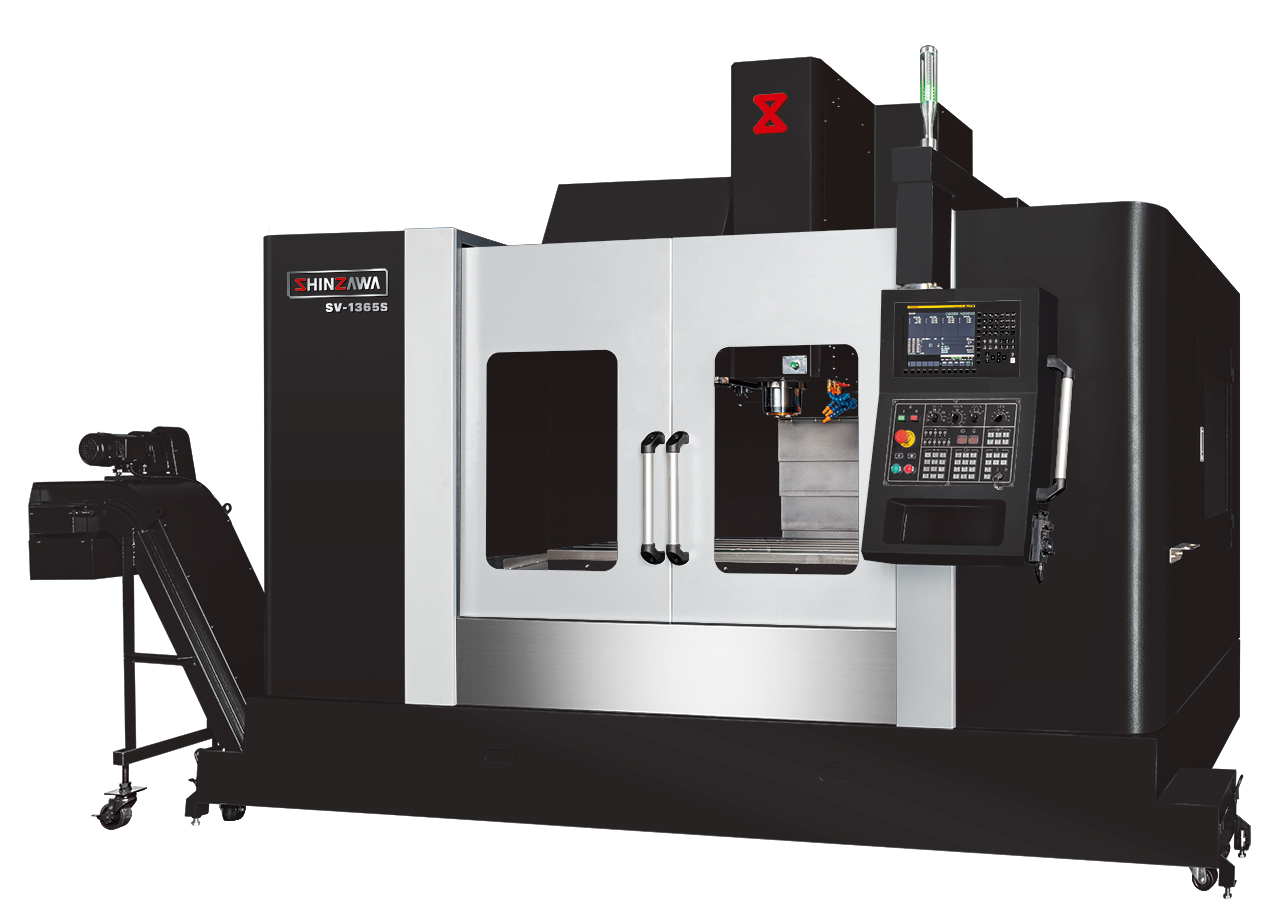

SV-85/110/130 & SV-865/1165/1365 Series

Milling Machines

Manufacturer:

Shinzawa

Country of Origin:

Taiwan

Short description:

Vertical Machining Center

basic information

specifications

Images

Rigid 3-axis vertical machining centers in two families: standard SV-85S/110S/130S (600 mm Y-axis) and extended-Y SV-865S/1165S/1365S (650 mm Y-axis)
X-axis travels of 850/1100/1300 mm; Y-axis 600 mm (SV-85/110/130) or 650 mm (SV-865/1165/1365); Z-axis 600 mm; spindle-nose clearance 100–700 mm
High-precision BT-40 direct-drive spindle (10 000 rpm, 7.5/11 kW) with low run-out and rapid acceleration
Arm-type 24-station ATC with 1.8 s tool-to-tool change; holds Ø70 mm × 250 mm × 7 kg tools (Ø150 mm max without adjacent)
Fast axis moves: 36/36/30 m/min rapid traverse (X/Y/Z); cutting feeds 1–12 m/min; choice of Mitsubishi (3.5/3.5/3.5 kW) or Fanuc (4.0/4.0/4.0 kW) servo drives
Generous cast-iron tables: 1000×600 to 1400×600 mm with 18×5×100 mm T-slots; payloads 800–1000 kg
Compact footprints from 2700×2195 mm to 3450×2595 mm; heights ~2900 mm (standard) or 2815 mm (extended-Y); weights 6800–7300 kg; 25 kVA power requirement

The SV-85S, SV-110S and SV-130S models deliver X/Y/Z travels of 850×600×600 mm, 1100×600×600 mm and 1300×600×600 mm with spindle-nose-to-table clearance of 100–700 mm. Their extended-Y counterparts (SV-865S, SV-1165S, SV-1365S) offer 850×650×600 mm, 1100×650×600 mm and 1300×650×600 mm travels with the same Z-stroke and nose-clearance. Worktables range from 1000×600 mm to 1400×600 mm, feature 18×5×100 mm T-slots and carry 800–1000 kg. All machines use a BT-40 direct-drive spindle (10 000 rpm, 7.5/11 kW), achieve 36/36/30 m/min rapid traverses, 1–12 m/min cutting feeds, and employ Mitsubishi (3.5/3.5/3.5 kW) or Fanuc (4/4/4 kW) axis servos. The 24-station arm-type ATC accepts Ø70 mm × 250 mm × 7 kg tools (Ø150 mm max no-neighbor) with 1.8 s tool-to-tool time. Footprints span 2700×2195 mm to 3450×2595 mm, heights of ~2900 mm (standard) or 2815 mm (extended-Y), net weights 6800–7300 kg, and a 25 kVA power draw.
